UTP MAX

An elegant and powerful touch

Total connectivity and fast processing with slick customer-friendly design

Node.Name

Ingenico AXIUM DX8000
Mobile card machine

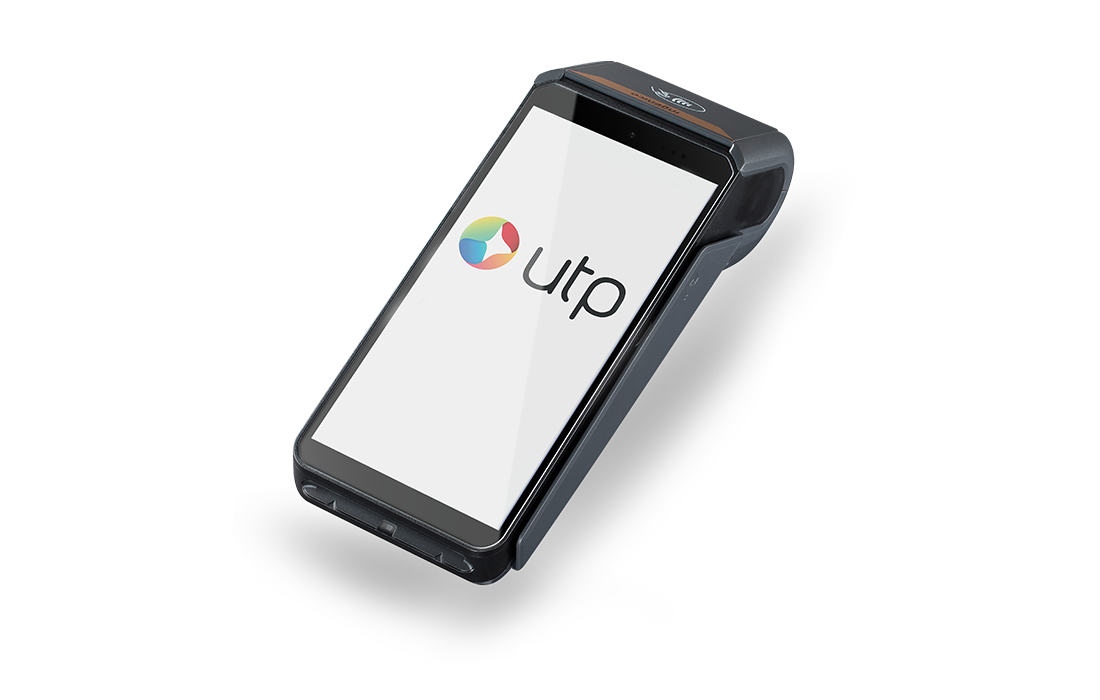

Introducing the UTP Max.

Maximum speed with payment processing in as little as 1.2 seconds.

Maximum connectivity with 3G, 4G, Bluetooth, GPRS and WiFi.

Maximum experience with 6-inch HD customisable home screen to advertise selected images and messages to your customers.

Maximum security with PCI PTS V6 certified, as well as being covered by UTP Shield.

Don't worry about missing a sale, the UTP Max has a powerful long-life battery. Let your customers pay their way with chip and PIN, contactless, digital wallet, and QR-code payment options.

All the power of Android 10, in one easy-to-use Ingenico card machine.

As part of the set up process UTP will create your Merchant Account with Barclaycard Payment Acceptance. The card machine will be pre-configured with details of your Account.

Get the maximum experience

Take a closer look at the UTP Max's stylish new ergonomic design

Move the terminal with your cursor to see every angle.



utp-max

Hourly payments

Get paid in hours, not days. Using Faster Processing, your UTP Max comes with the fastest transactions on the market.

utp-max

Simple installation

Coming with your Barclaycard Payment Acceptance merchant account pre-configured, the UTP Max is easy to set up.

utp-max

Powerful processor

Powered by the latest Android OS, you'll have access to helpful apps to breeze through your transactions.

utp-max

Smart receipts

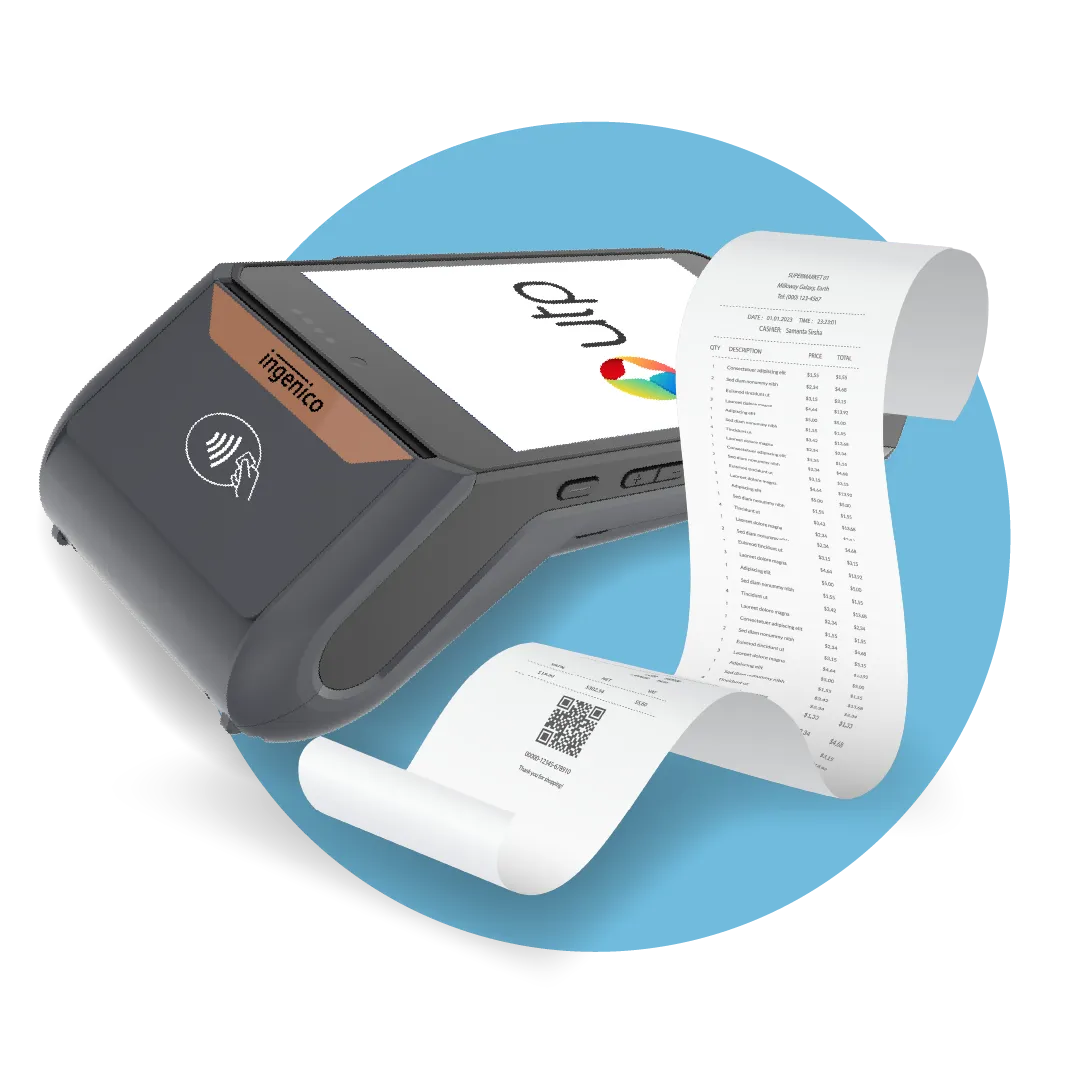

Itemise receipts directly from the terminal. Drop-in paper loading virtually eliminates paper jams that create delays.

wifi-icon

Stay connected

Boasting 3G, 4G, WiFi, GPRS and Bluetooth, automatically switching to the strongest connection is easy



card-icon

All major cards accepted

Accept all major credit and debit cards, including Visa, Mastercard, American Express and Diners



camera-icon

Dual cameras

5MP autofocus flash camera on the front, 2MP to rear both capable of code scanning



Utp Group Icon Battery Life V2

Super long-life battery

Never miss a sale with the UTP Max's high capacity long-life battery

faster-processing-icon

Faster processing speed

Process a payment in less than 2 seconds to serve more customers. With Faster Processing in place your transactions will be with you in hours

utp-shield-icon

Safe and protected

Compliant with the latest global regulations and PCI PTS V6 certified, top of the line cryptography. Comes with UTP Shield



accessibility-icon

Accessibility

Ingenico has collaborated with the Royal National Institute of blind people (RNIB) on the design of a new interface

    • 4G, 3G, GPRS, Bluetooth and WiFi connectivity options
    • Powerful processing to increase speed and output
    • Powerful dual camera
    • Fast integrated printer
    • Accept all methods of payment (chip and PIN, contactless, digital wallets, magstripe and QR-code payments)
    • Increased security protection
    • Durable hardware
    • Transaction times in as little as 1.2 seconds
    • ‘Save 5000 hours of checkout time’
    • Long lasting battery -with inbuilt 'wake-up' feature' to further save battery
    • 6'' touch screen
    • Customisable home screen to show graphical images and messages
    • 16GB Flash,2GB RAM
    • Double click capacitive screen to wake up the card machine
    • Ingenico has collaborated with the Royal National Institute of blind people (RNIB) on the design of a new interface for its AXIUM DX8000
    • Android payment terminal
  • AXIUM DX8000-5 Series
    Processor Application processor Cortex Quad-core A53, 1.3GHz
      Crypto processor Security core SC300, 192MHz
    Memory Internal 16GB Flash,2GB RAM
      External MicroSD Card slot
    OS     Android Android 10 Security OS
    SAM /SIM slots 4 slots (SAM + SIM) 2 SIM + 2 SAM
    Card readers Magnetic card reader Support ISO 1/2/3 track data, bi-directional swiping
      Smart card reader
      NFC/contactless EMV Contactless L1 3.0 certified; support ISO / IEC 14443 Type A / B, Felica
    Display Color / capacitive multi-touch 6’’HD+, 1440 x 720 px
    Printer Integrated thermal printer Diameter: 40mm
    Keys & Keypad Power key & volumes keys 1 Power key & 2 volumes keys
      Capacitive screen keys Virtual screen keys: Menu, Home, Back
    Terminal wake-up Wake-up gesture Double click capacitive screen to wake up the terminal system
    Audio Support audio play Support audio play
      Headphone USB C
    Connectivity WAN 4G fallback 3G and GPRS
      LAN Bluetooth 4.2 support BLE
        WiFi IEEE8.2.11 a/b/g/n/ ac 2.4G and 5G
    Connections USB USB Type C
    Data capture Positioning Tracking GPS, GLON/ ASS, BEIDOU
      Rear camera 5MP, autofocus, flash, code scanning
      Front camera 2MP, fixed focus camera, code scanning
    Battery Li-ion 3350mAh / 7.2V, 24.12Wh
    Size Terminal only 198 x 83 x 62.5 mm (7.79 x 3.26 x 2.46”)
    Weight Terminal + battery 450g (15.87oz)
    Security PCI PCI PTS V6 certified
    Environment Operating Temperature -10°C to +50°C (14°F to 122°F)
      Storage Temperature -20°C to +70°C (-4°F to 158°F)
      Operating Humidity 10% to 90% non-condensing
    AXIUM DX8000-2 Series
    Processor Application processor Cortex Quad-core A53, 1.3GHz
      Crypto processor Security core SC300, 192MHz
    Memory Internal 8GB Flash, 1GB RAM
      External MicroSD Card slot
    OS Android  Android 10 Security OS
    SAM /SIM slots 4 slots (SAM + SIM) 2 SIM + 2 SAM
    Card readers Magnetic card reader Support ISO 1/2/3 track data, bi-directional swiping
      Smart card reader
      NFC/contactless EMV Contactless L1 3.0 certified; support ISO / IEC 1 4443 Type A / B, Felica
    Display Color / capacitive multi-touch  5.5’’HD, 1280 x 720 px
    Printer Integrated thermal printer  Diameter: 40mm
    Keys & Keypad Power key & volumes keys 1 Power key & 2 volumes keys
      Capacitive screen keys Physical screen keys: Menu, Home, Back
    Terminal wake-up Wake-up gesture Double click capacitive screen to wake up the terminal system
    Audio Support audio play Support audio play
      Headphone USB C
    Connectivity WAN 4G fallback 3G and GPRS
      LAN  Bluetooth 4.2 support BLE
        WiFi IEEE8.2.11 b/g/n 2.4G only
    Connections  USB  USB Type C
    Data capture  Positioning Tracking GPS, GLON/ ASS, BEIDOU
      Rear camera  5MP, autofocus, flash, code scanning
      Front camera  0.3MP, fixed focus camera, code scanning
    Battery  Li-ion  2600mAh / 7.2V, 18.7Wh
    Size  Terminal only  198 x 83 x 62.5 mm (7.79 x 3.26 x 2.46”)
    Weight  Terminal + battery  450g (15.87oz
    Security  PCI  PCI PTS V6 certified
    Environment  Operating Temperature  -10°C to +50°C (14°F to 122°F)
      Storage Temperature  -20°C to +70°C (-4°F to 158°F)
      Operating Humidity 10% to 90% non-condensing
  • Getting started with the UTP Max is quick and easy. Use this handy UTP Max Quick Start Guide to start taking payments with your new terminal.

    If you have any trouble, get in touch with our Help Centre by calling 0330 99 99 900 or email helpdesk@utpgroup.co.uk. More information on support can be found here: https://www.utpgroup.co.uk/help-centre/
